GraphQL Requests

Learn about the necessary cloud infrastructure resources on which the API project application relies on to perform graphql requests.

What you’ll learn

how GraphQL HTTP requests are handled by the deployed cloud infrastructure and application code

Diagram

Webiny Cloud Infrastructure - API - GraphQL Requests

(click to enlarge)

What you’ll learn

For brevity, the diagram doesn’t include network-level cloud infrastructure resources, like region, VPC, availability zones, and so on. Check out the Default VPC and Custom VPC topics if you’re interested in that aspect of the deployed cloud infrastructure.

Description

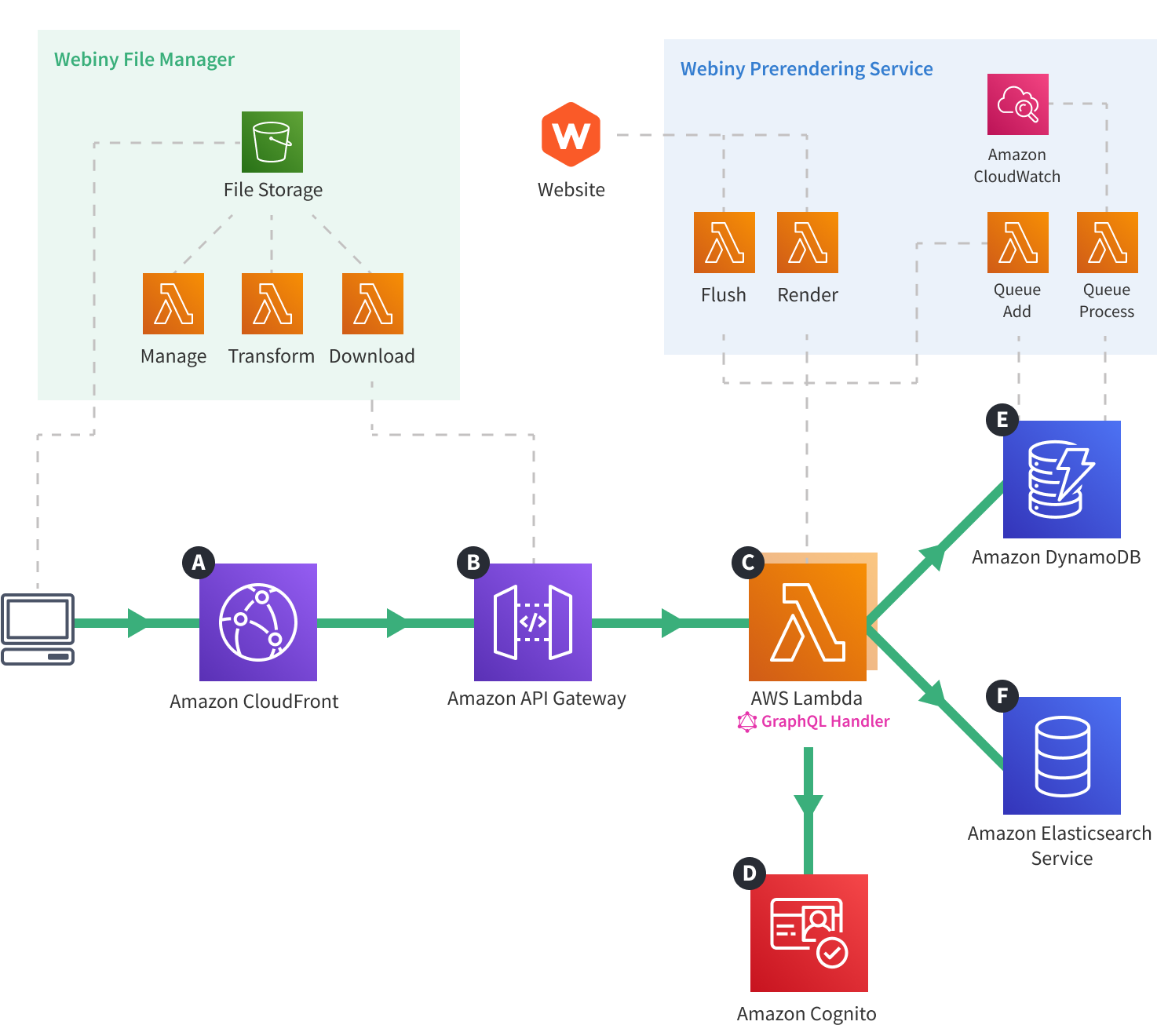

The diagram shows how HTTP requests (GraphQL queries and mutations) travel through the deployed cloud infrastructure. Request are primarily issued by the Admin Area, or Website applications, but of course, can be issued by other clients as well.

The steps are the following:

The GraphQL HTTP request first reaches the Amazon CloudFront A.
The request is forwarded to the Amazon API Gateway B.
The Amazon API Gateway invokes the GraphQL Server Lambda function C.
Depending on the issued GraphQL operation, the Lambda function’s code may issue one or more requests to other cloud infrastructure resources:
1. Amazon Cognito D to perform identity authentication
2. Amazon DynamoDB E or Amazon ElasticSearch Service F to perform database queries
Once the code execution has completed, an HTTP response is returned back to the Amazon API Gateway B.
The Amazon API Gateway B forwards the request to the Amazon CloudFront A, which again forwards it back to the client.
